Over my three decades navigating the intricate dance of mechanical and electrical automation, I’ve seen countless innovations. Some were fleeting fads, others, like the one I want to discuss today, have fundamentally changed how we approach everyday challenges on the production floor. If you’ve ever wrestled with the sheer mass and awkwardness of metal coils, or worried about the safety of your team during material handling, then you’ll understand why a seemingly simple piece of equipment can be a game-changer. We’re talking about managing those hefty coils – a task that, if not handled correctly, can be a bottleneck, a safety hazard, and a drain on efficiency. So, how can we transform this cumbersome process into a streamlined, safe, and space-saving operation?
What Exactly is This Coil-Handling Marvel We Call an Upender, and Why Should It Pique Your Interest?
You might have heard it called a coil upender, a coil tilter, or perhaps a coil tipper. Regardless of the moniker, its function is elegantly straightforward yet profoundly impactful. At its core, this is a robust piece of industrial machinery designed with a singular, critical purpose: to meticulously rotate or tip coils of material – predominantly metal, but applicable to other coiled goods too – from a horizontal (eye-to-sky) orientation to a vertical (eye-to-wall) stance, or vice versa.
Now, you might be wondering, "Why is such a rotation so critical?" Well, after years of seeing these machines in action, I can tell you the reasons are manifold and touch upon nearly every facet of efficient and safe manufacturing. It’s not just about flipping a coil; it’s about unlocking potential in your workflow, your storage, and your team’s well-being. Think of it as the unsung hero in the initial stages of many production lines, quietly ensuring that everything that follows can proceed smoothly.
How Can a Coil Upender Truly Revolutionize Your Operational Landscape?
The true value of a coil upender, or coil tipping car as it’s sometimes configured, isn’t just in its ability to tilt. It’s in the cascading benefits that ripple through your entire operation. I’ve seen facilities transform their material handling processes almost overnight with the strategic implementation of these units.
Are You Constantly Battling for Floor Space? Could Vertical Storage Be Your Answer?
One of the most immediate and tangible benefits I’ve observed is storage and space optimization. Picture this: massive coils arriving and being laid flat, consuming vast swathes of your valuable warehouse or factory floor. It’s a common sight, but a highly inefficient use of space. By tilting these coils into an upright, vertical position, it’s like turning a book from lying flat to standing on a shelf – the footprint shrinks dramatically. I recall a mid-sized fabrication shop I consulted for; they were considering expensive off-site storage. Implementing a couple of coil upenders allowed them to store twice the amount of raw material in their existing space, effectively shelving the expansion plans and saving a significant capital outlay. This vertical storage not only saves space but also makes inventory management and accessibility far more straightforward.
Could Loading and Unloading Coils Be Safer and More Efficient?
Next, consider the coil loading and unloading process. Manhandling or even using less specialized equipment to position heavy coils onto machinery like stamping presses, uncoilers for roll forming lines, or slitting machines can be a precarious and time-consuming affair. A coil upender, especially one designed as a "tipping car," can gracefully and precisely present the coil in the correct orientation for the subsequent machine. This often means the coil can be moved from storage, tipped, and loaded onto an uncoiler mandrel with minimal manual intervention and reduced reliance on overhead cranes for complex maneuvers. The transition becomes smoother, faster, and far less prone to misalignment or damage to the coil or the machinery.
Is Enhancing Worker Safety a Top Priority in Your Facility?
This brings me to a point I can’t emphasize enough: safety. Working with large, heavy coils inherently carries risks. I’ve unfortunately seen or heard of accidents resulting from coils shifting unexpectedly during manual handling or when being maneuvered by forklifts or cranes in less-than-ideal orientations. Tipping coils to a stable vertical position with a dedicated upender significantly mitigates these risks. The controlled, mechanical movement ensures that the coil’s center of gravity is managed throughout the repositioning process. This prevents injuries, reduces worker fatigue, and frankly, gives everyone a bit more peace of mind. Investing in safety isn’t an expense; it’s a cornerstone of a productive and ethical operation.
Can Repositioning Coils Actually Improve Your Quality Control?
Finally, let’s not overlook quality control. For certain manufacturing processes or material types, inspecting a coil thoroughly is paramount. Sometimes, defects, edge damage, or inconsistencies are more easily identified when the coil is in a vertical or specifically angled position. An upender allows for this precise positioning, enabling quality assurance teams to conduct their checks more effectively before the material enters the production stream, preventing costly rework or scrap down the line. I remember a particular instance in a high-grade aluminum processing plant where subtle edge delaminations were being missed. Orienting the coils vertically for inspection using a tilter made these defects far more apparent, leading to a significant improvement in final product quality.
Diving Deeper: How Does This Marvel of Engineering Actually Perform Its Task?
The operational principle of a coil upender is generally quite elegant. These machines come in a spectrum of sizes and designs, tailored to accommodate a wide array of coil diameters, widths, and, crucially, weights. Typically, they feature a robust frame or a V-shaped or curved platform onto which the coil is loaded in its initial orientation (usually horizontal). This platform is then actuated, commonly via hydraulic systems for heavy loads due to their power and smooth control, or sometimes mechanical systems for smaller capacities.
The operator, often using a simple control panel, loads the coil, ensures it’s securely positioned (some models have clamping mechanisms, though gravity and the platform shape often suffice), and then initiates the upending cycle. The platform then smoothly rotates the coil through 90 degrees to the desired vertical or angled position. The beauty lies in the controlled nature of this movement, ensuring the coil’s integrity and the safety of the operation. Some advanced models, often called coil tipping cars, might also incorporate powered travel along a track, allowing them to pick up a coil from a storage area, tip it, and deliver it directly to the next processing station, like an uncoiler.
Let’s take a look at a typical example. You might encounter specifications like:
- Coil Tipping Car Maximum 7 Tons
- 240v Three Phase 60Hz
This tells you that this particular unit is designed to handle substantial coils up to 7 tons (approximately 15,400 lbs or 7,000 kg) and operates on a common industrial power supply. Understanding these basic specifications is key when considering if such a machine fits your material and infrastructure.
Visualizing the Action: Can You Show Me How It Works?
Absolutely. Seeing is believing, and in my experience, watching these machines operate clarifies their utility immensely.

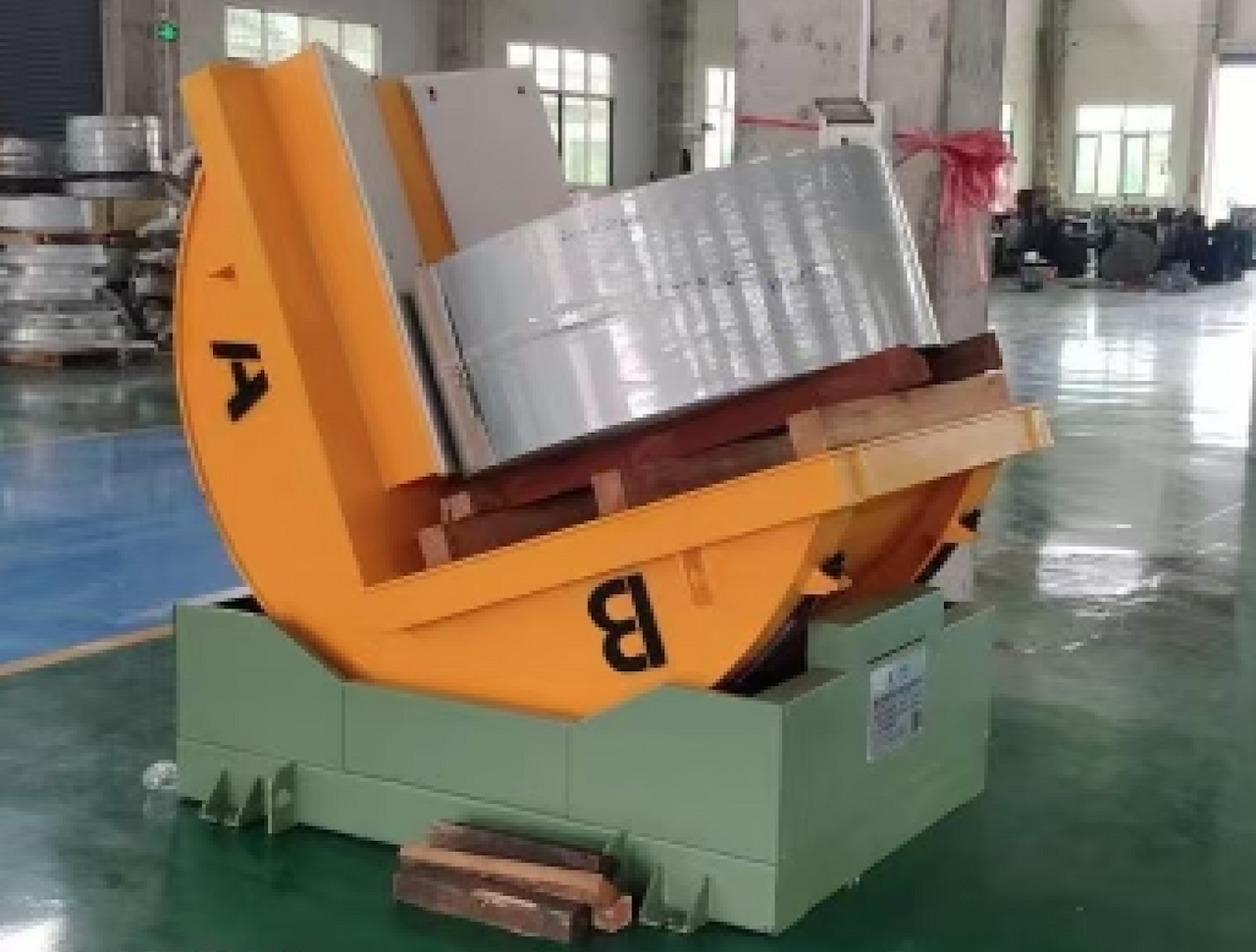

Here’s a coil upender, ready to receive or having just positioned a coil. Notice the sturdy construction, designed to handle significant loads.
This image again highlights the robust platform and the overall design that facilitates the safe rotation of heavy coils.
Here you can see a coil nestled securely in the V-shaped cradle of the upender, likely in the process of being tilted or having just been tilted.
Another view, perhaps showing the machine from a different angle, emphasizing its footprint and construction.
This perspective might offer insight into the drive mechanism or the structural supports that ensure stability during the tipping process.
A close-up or different angle can reveal more details about the coil interface and how it securely holds the material.
Each image provides a glimpse into the practical design considerations of these indispensable machines.
And here, a clear shot of the machine, possibly illustrating its scale or a specific feature.
This image perhaps shows the control interface or the hydraulic components.
To truly grasp its smooth operation, watch this short video. It demonstrates a coil tipping car in action, clearly showing the rotation process:
And here’s another demonstration, providing a further look at the capabilities of such a device:
Where Do These Coil Upenders Typically Demonstrate Their Full Potential?
You’ll find these workhorses in a surprisingly diverse range of industries. Essentially, any sector that processes or handles large coils of material can benefit. I’ve personally seen them making a huge difference in:
- Steel Processing Plants and Service Centers: Perhaps the most common application. Here, massive steel coils are received, stored, and then fed into slitting lines, cut-to-length lines, or stamping operations. Upenders are vital for orienting these coils for efficient decoiling.
- Metal Fabrication Shops: From automotive components to appliance manufacturing, fabricators working with sheet metal coils rely on upenders to prepare materials for presses, roll formers, and laser cutters.
- Roll Forming Operations: My own bread and butter for many years! Whether it’s for roofing panels, structural C&Z purlins, metal studs, or intricate profiles, the roll forming process almost invariably starts with a coil. An upender ensures the coil is correctly positioned for the uncoiler, which is the gateway to the entire forming line.
- Paper Mills: Large rolls of paper are akin to metal coils in their handling challenges. Upenders are used to orient these rolls for printing presses or converting machinery.
- Wire and Cable Manufacturing: Coils of wire, often very heavy, need to be manipulated for drawing, stranding, or jacketing processes.
- Tube and Pipe Mills: The raw material, steel strip, arrives in coils and needs to be oriented for feeding into the mill that forms and welds it into tubing or piping.
The list goes on, but the common thread is the need for safe, efficient, and space-conscious handling of heavy, coiled stock.
My Personal Reflections: Three Decades of Watching Material Handling Evolve
Looking back, the evolution of material handling equipment, including coil upenders, has been remarkable. In the early days of my career, much of this work was done with more manual effort, more risk, and frankly, more brute force than finesse. The emphasis on ergonomic design and integrated safety features that we see in modern coil tilters is a testament to how far the industry has come.
I’ve seen operations go from struggling with frequent production stops due to coil changeover issues to seamless, almost continuous operation simply by integrating a well-chosen upender and coil car system. The return on investment isn’t just in saved labor or fewer damaged coils (though those are significant). It’s in the increased throughput, the improved morale from a safer working environment, and the ability to confidently handle larger and more varied coil stock, opening up new business opportunities. It’s a piece of equipment that often pays for itself much faster than anticipated. I always advise clients that when planning a new line or upgrading an existing one, don’t treat coil handling as an afterthought. It’s foundational.
Beyond the Upender: What Other Equipment Synergizes to Create a Cohesive Coil Processing Line?
A coil upender, as crucial as it is, rarely works in isolation. It’s typically part of a larger ecosystem of machinery designed to take raw coiled material and transform it. Understanding these complementary pieces of equipment can help you envision a truly optimized production flow. So, what other systems might you find working in concert with a coil tipper?
Have You Considered the Importance of a Reliable Uncoiler or Decoiler?
Once your coil is tipped to the vertical (eye-to-wall) position, it’s ready to be mounted onto an Uncoiler (or Decoiler). This is the machine that actually pays out the material from the coil in a controlled manner.
- Function: Uncoilers securely hold the coil, often on an expanding mandrel that grips the coil’s inner diameter, and allow it to rotate freely or under controlled tension as the material is pulled into the next process (e.g., a roll former or press).
- Features: They can range from simple, non-powered (pull-off) units to sophisticated powered versions with variable speed control, hydraulic mandrel expansion, and even integrated coil cars for loading. Some heavy-duty uncoilers feature hold-down arms to prevent clock-springing of the coil and powered threading assistance. For lines handling various coil widths, adjustable edge guides are essential. The choice depends heavily on coil weight, material thickness, line speed, and the level of automation desired. I’ve seen uncoilers capable of handling coils weighing 20 tons or more, a far cry from what you’d attempt to manage manually!
Do You Need to Customize Coil Widths? Is a Slitter Line the Next Step?
In many instances, the master coils received from suppliers are wider than what’s needed for a specific product. This is where a Slitter Line comes into play.
- Function: A slitter line takes a wide coil, uncoils it, passes the strip through a set of rotary slitting knives that cut it into multiple narrower strips (mults), and then recoils these narrower strips.
- Features: A typical slitter line consists of an uncoiler, looping pits (to allow for continuous operation while master coils are changed or to manage tension), the slitter head itself (with precision-ground knives and spacers), tensioning stands, and one or more recoilers. Modern slitters can have quick-change tooling heads to minimize downtime when switching between jobs requiring different slit widths. The precision of the slit edge and the tightness of the recoiled mults are critical quality parameters. I’ve worked on projects where integrating a slitter in-house, fed by coils efficiently handled by upenders and coil cars, dramatically reduced lead times and material costs compared to buying pre-slit coils.
Is Transforming Flat Strip into Complex Shapes Your Goal? What About Roll Forming?
For many industries, especially construction, automotive, and shelving, Roll Forming Machines are the heart of the operation.
- Function: Roll forming is a continuous bending operation in which a long strip of sheet metal is passed through sets of rollers (roll stations), each performing an incremental part of the bend, until the desired cross-section profile is obtained.
- Features: These machines can be incredibly versatile. You have machines dedicated to specific profiles like metal roofing panels (e.g., PBR, Ag-panels), wall panels, or metal decking. Then there are purlin machines capable of producing C, Z, and U sections, often with quick-change capabilities to switch between profiles and sizes. High-speed machines are available for products like drip edges or flashing. Some advanced systems use cassette-style roll tooling, where entire sets of rolls for a given profile are mounted on a sub-assembly (cassette) that can be quickly swapped out, drastically reducing changeover times. I’ve seen lines producing structural beams, intricate trim pieces, and even complex automotive components, all starting from a simple coil of steel. The integration of pre-punching, pre-notching, and flying cut-off systems within the roll forming line adds further to their efficiency.
What About Handling the Material Before and After the Main Process?
Beyond these core machines, there’s a host of ancillary equipment that supports the overall flow:
- Coil Cars: These are often used in conjunction with uncoilers. They are V-topped or platform carts, often powered and running on rails, that can lift a coil from the floor or a storage pallet and precisely position it onto the uncoiler mandrel. A coil tipping car, which we’ve discussed, can be seen as a specialized coil car with an added tilting function.
- Embossers: Sometimes, a pattern or texture needs to be imparted onto the metal strip before it’s formed. Embossing Machines use engraved rolls to press a design into the material, often for aesthetic reasons or to improve stiffness. This is common in ceiling tiles or some types of siding.
- Runout Tables and Stacking Systems: After a product is roll-formed and cut to length, it needs to be handled. Runout Tables simply support the finished product as it exits the machine. More sophisticated lines will incorporate automated Stacking Systems or Nesting Systems that collect and bundle the finished parts, ready for shipping or the next assembly stage. This is especially crucial for high-volume production to avoid bottlenecks.
- Tube & Pipe Mills: Similar to roll forming but with the added step of welding the seam, Tube & Pipe Mills take coiled strip and progressively form it into a round, square, or rectangular tube, then weld the edges together, cool it, size it, and cut it to length. The initial coil handling principles are very much the same.
Thinking about your production line as an integrated system, where each piece of equipment, from the initial coil upender to the final stacking unit, plays a vital role, is key to achieving true manufacturing excellence. My years in this field have taught me that a bottleneck in material handling can cripple even the most advanced processing machinery. That’s why investing in robust and efficient solutions like coil upenders is not just an operational upgrade; it’s a strategic imperative for any business serious about productivity, safety, and growth in the modern industrial world.
